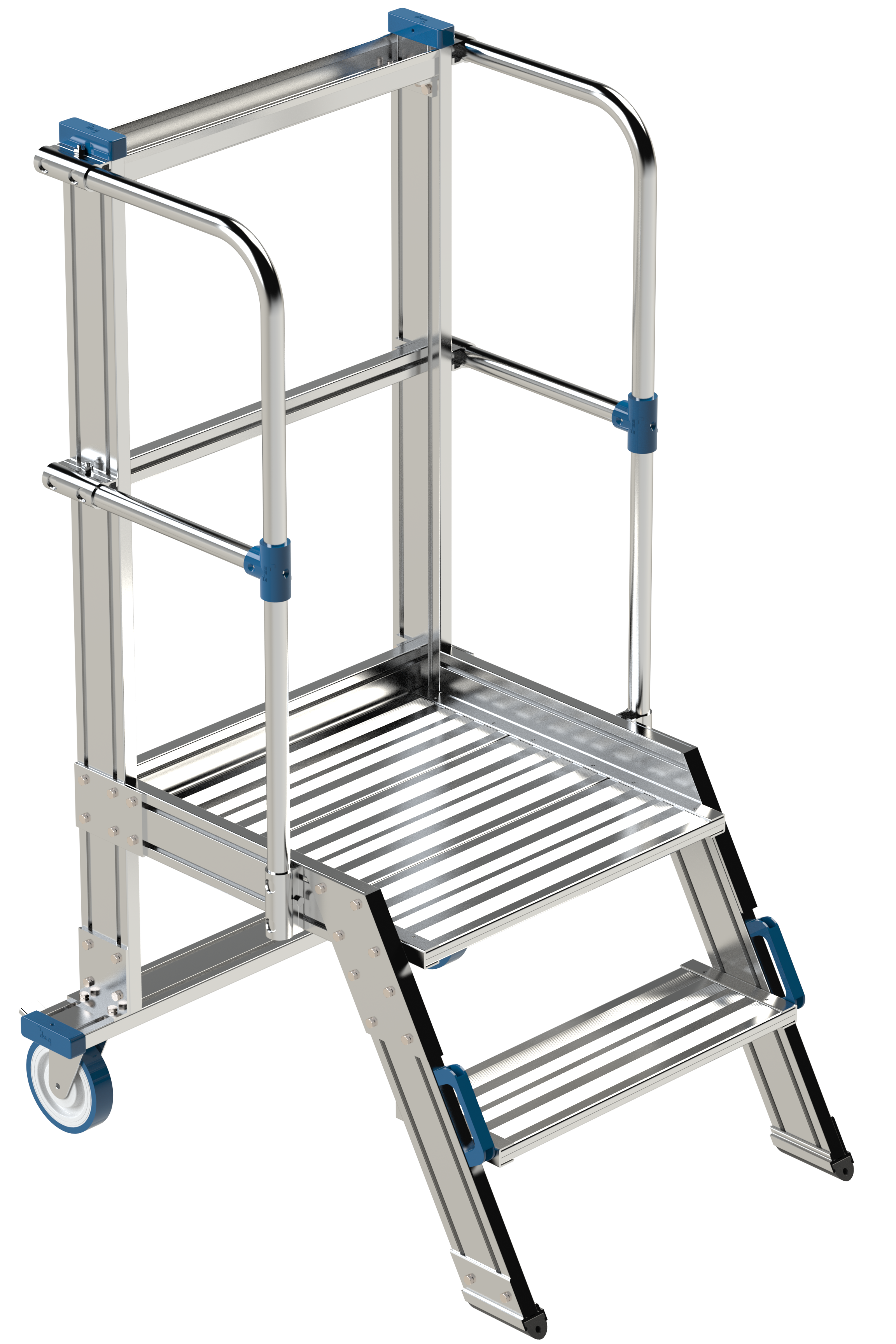

E0510 – Secondary guardrail – Series 10100 60 °

To request a quote, first select the variation options.

SKU: N/A Category:

Description

Additional railings for model 10100

Model / Download plan
Rungs
Weight
WidthD1/D2
Overture N
Platform height
Working height B
Total height M
Platform O1/O2
2
18
650/875
976
500
2000
1529
600x600
3
21
650/875
1120
750
2250
1779
600x600
4
26
650/875
1264
1000
2500
2029
600x600
5
30
650/1108
1409
1250
2750
2279
600x600
6
35
650/1258
1553
1500
3000
2629
600x600
7
40
650/1408
1697
1750
3250
2729
600x600
8
45
650/1508
1872
2000
3500
3029
600x600
10
53
650/1808
2131
2500
4000
3529
600x600
12
65
650/1908
2348
3000
4500
4029
600x600
14
73
650/2108
2708
3500
5000
4529
600x600
16
88
650/2186
2996
4000
500
5029
600x600
18
93
650/2358
3285
4500
6000
5529
600x600
20
100
650/2458
3573
5000
6500
6029
600x600
