11002 – Lightweight aluminum stool 51° EN14183

Category:

Description

Features to highlight

Approximate maximum working height (mts): 3

Inclination °: 51

Rung (mm): 200 / last 300

Rung spacing (mm): 250

Other details

Extruded profiles.

Rectangular side uprights.

Fully welded.

The lateral structure is individually reinforced on each of the steps.

This series seeks to occupy as little space as possible.

Model / Plan download
download3D

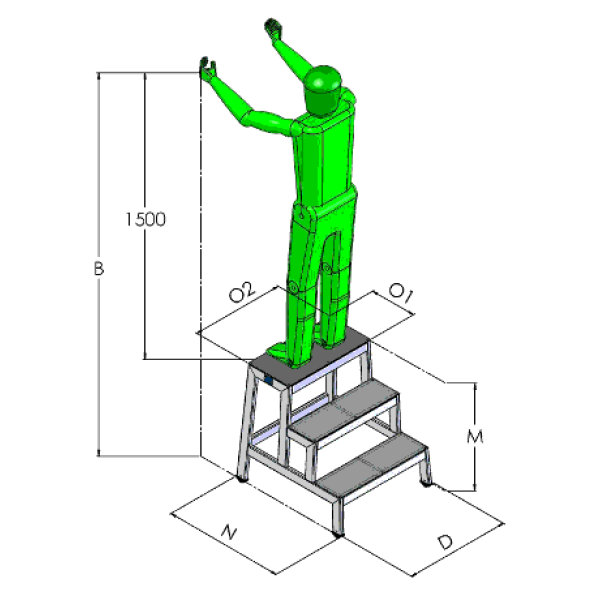

Rungs
Weight
Width D
Overture N
Working height B
 total height  M
Plataform O1/O2
1
3,6
0,60
0,30
1,75
0,25
0,30x0,60
2
6,7
0,60
0,55
2,00
0,50
0,30x0,60
3
9,9
0,60
0,77
2,25
0,75
0,30x0,60
4
13,3
0,60
0,99
2,50
1,00
0,30x0,60
