Description
Features to highlight
Approximate maximum working height (mts): 4.5
Inclination °: 75
Rung (mm): 30
Rung spacing (mm): 270
Other details
Ergonomic extruded side pillars.
20 mm opening tape.

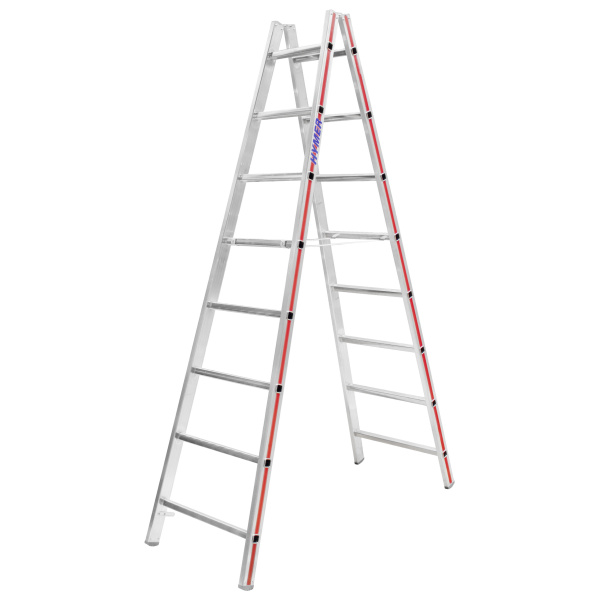

4023 – Double access scissor ladder EN131.1-2
Model | Rungs | Weight | Width D | Overture N | Working height B | Total height M | Folded length |
4023/2x5 | 2x5 | 5,1 | 0,51 | 0.95 | 2,27 | 1,45 | 1,47 |
4023/2x6 | 2x6 | 6,1 | 0,54 | 1,15 | 2,50 | 1,70 | 1,75 |
4023/2x7 | 2x7 | 7,3 | 0,57 | 1,25 | 2,80 | 1,95 | 2,05 |
4023/2x8 | 2x8 | 8,4 | 0.60 | 1,45 | 3,05 | 2,25 | 2,33 |
4023/2x10 | 2x10 | 10,9 | 0.66 | 1,85 | 3,57 | 2,75 | 42,88 |
4023/2x12 | 2x10 | 10,9 | 0.66 | 1,85 | 3,57 | 2,75 | 2,88 |
4023/2x12 | 2x12 | 13,6 | 0.72 | 2,05 | 4,10 | 3,25 | 3,44 |
