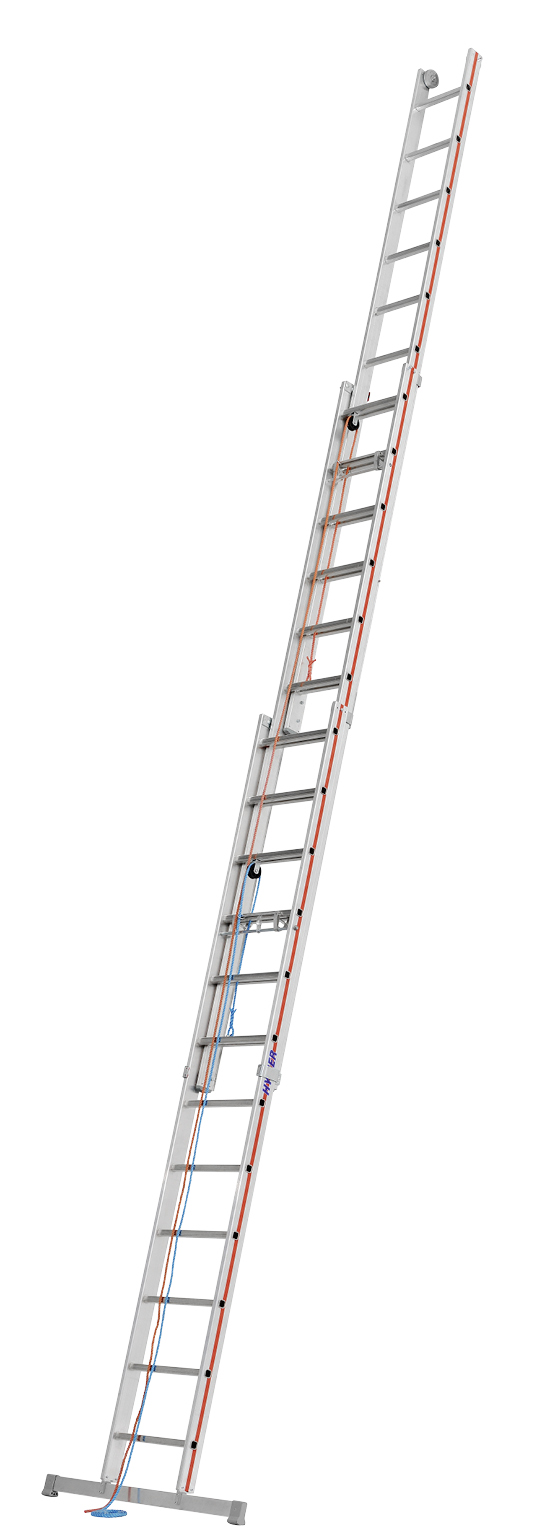

4061 – Ladder 3 mechanical sections extendable EN131.1-2

Category:

Description

Features to highlight

Approximate maximum working height (mts): 12

Inclination °: 75

Rung (mm): 30

Width (mm): 355 / 425 / 490

Rung spacing (mm): 280

Other details

Ergonomic extruded side pillars.

Steel guides.

Embedded feet.

Wheels at the upper end that protect the ladder on the support surface against friction.

The rope in the upper section is 10 mm blue, and the middle one to differentiate it is 12 mm orange.

Model
Rungs
Weight
Width D
Overture K
Working height A
Total height  J
Folded length
4061/3x12
3x12
28,5
0,49
2,16
8,52
8,05
3,57
4061/3x14
3x14
33,0
0,49
2,53
9,87
9,43
4,13
4061/3x16
3x16
39,0
0,49
2,96
11,50
11,05
4,69
