6060-6061 – Scissor ladder with large platform EN131.1-2

Category:

Description

Features to highlight 6060:

Approximate maximum working height (mts): 2.20

Inclination °: 47

Rung (mm): 230

Rung spacing (mm): 250

Other details

Folding ladder.

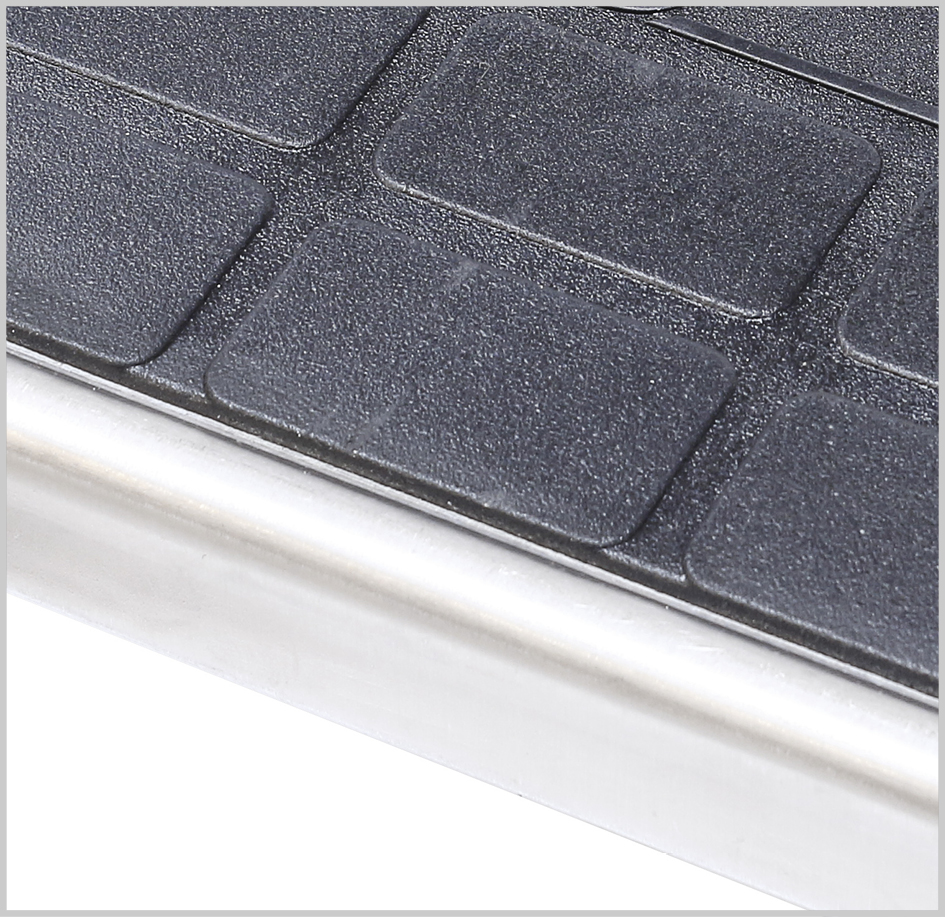

Steps with non-slip rubber coating.

Solid reinforcement, resistant to pressure and traction between the ladder and the support section.



Features to highlight 6061:

Approximate maximum working height (mts): 2.65

Inclination °: 47

Rung (mm): 230

Rung spacing (mm): 250

Other details

Folding ladder.

Steps with non-slip rubber coating.

Solid reinforcement, resistant to pressure and traction between the ladder and the support section.

With protective railings and tray.

Model
Rungs
Weight
Width D
Overture N
Working height B
Total height  M
Folded length
6060/02
2
5,0
0,48
0,55
1,95
0,45
0,55
6060/03
3
8,4
0,56
0,90
2,20
0,70
1,12
6061/03
3
8,4
0,56
0,90
2,20
0,70
1,12
6061/04
4
10,6
0,58
1,15
2,40
0,90
1,43
6061/05
5
12,8
0,60
1,50
2,65
1,15
1,75
