Features to highlight
Approximate maximum working height (mts): 3.36
Inclination °: 68
Rung (mm): 50
Rung spacing (mm): 250
Other details
Stable support thanks to the continuously adjustable stabilizer (from size 4).

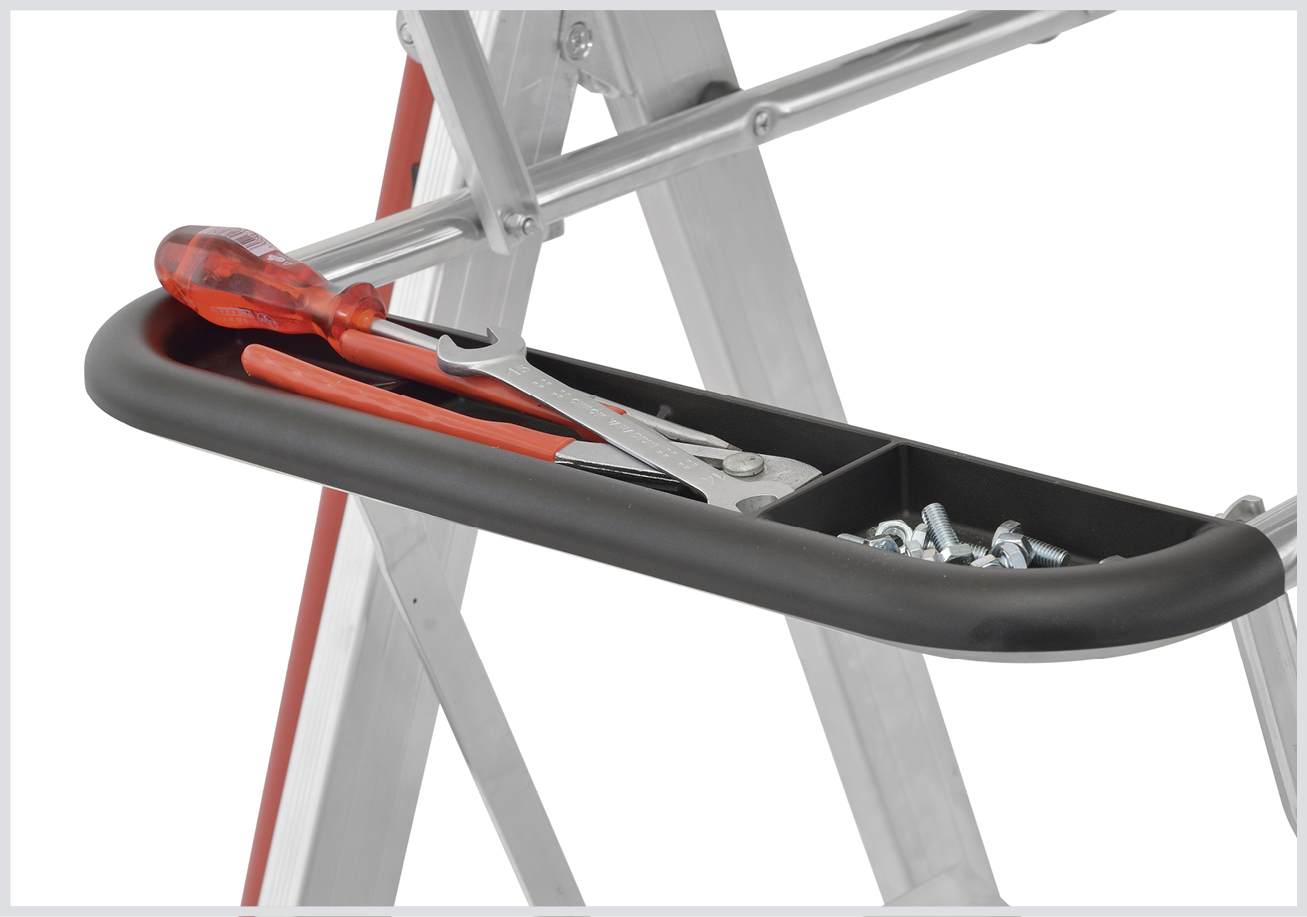

Functional tray with the possibility of mounting in two heights.
Spacious platform of 600×425 mm.
Comfortable movement thanks to the tilting wheels
Model | Rungs | Weight | Width D | Overture N | Working height B | Total height M | Folded length | Plataform 01/02 |
8483/03 | 3 | 14,2 | 0,65 | 1,20 | 2,19 | 1,74 | 1,85 | 0,60/0,43 |
8483/04 | 4 | 20,24 | 1,73 | 1,39 | 2,44 | 1,97 | 2,10 | 0,60/0,43 |
8483/05 | 5 | 22,3 | 1,90 | 1,57 | 2,66 | 2,20 | 2,35 | 0,60/0,43 |
8483/06 | 6 | 23,4 | 2,07 | 1,76 | 2,89 | 2,43 | 2,60 | 0,60/0,43 |
8483/07 | 7 | 25,0 | 2,24 | 1,95 | 3,13 | 2,66 | 3,10 | 0,60/0,43 |
8483/08 | 8 | 26,2 | 2,41 | 2,13 | 3,36 | 2,90 | 3,10 | 0,44/0,40 |
