Features to highlight
Approximate maximum working height (mts): 7
Inclination °: 75
Rung (mm): 30
Width (mm): 400/450
Rung spacing (mm): 290
Other details
Equipped with tilting shoes from model F6110. Lower models with fixed feet.
Insulator against electrical and thermal agents.
Antimagnetic and resistant to humidity, acids, corrosion and ultraviolet rays.
Stainless steel screws and fittings.
Uprights closed by covers and steps sealed with plugs.

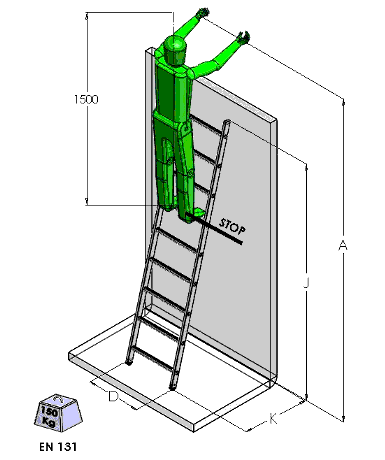

Model | Rungs | Weight | Width D | Overture K | Working height A | Total height J | Folded length |
F6105 | 5 | 5,5 | 0,40 | 0,40 | 2,29 | 1,49 | 1,54 |
F6106 | 6 | 6,0 | 0,40 | 0,47 | 2,57 | 1,76 | 1,82 |
F6107 | 7 | 6,5 | 0,40 | 0,54 | 2,85 | 2,03 | 2,10 |
F6108 | 8 | 7,0 | 0,40 | 0,62 | 3,13 | 2,30 | 2,38 |
F6109 | 9 | 7,5 | 0,40 | 0,70 | 3,46 | 2,62 | 2,71 |
F6110 | 10 | 8,5 | 0,40 | 0,77 | 3,74 | 2,89 | 2,99 |
F6111 | 11 | 9,5 | 0,40 | 0,85 | 4,02 | 3,16 | 3,27 |
F6112 | 12 | 10,5 | 0,40 | 0,92 | 4,30 | 3,43 | 3,55 |
F7113 | 13 | 11,0 | 0,40 | 0,99 | 4,58 | 3,70 | 3,83 |
F7114 | 14 | 12,0 | 0,40 | 1,06 | 4,86 | 3,97 | 4,11 |
F7115 | 15 | 13,0 | 0,45 | 1,14 | 5,14 | 4,24 | 4,39 |
F7116 | 16 | 14,0 | 0,45 | 1,21 | 5,42 | 4,51 | 4,67 |
F7117 | 17 | 15,0 | 0,45 | 1,28 | 5,70 | 4,78 | 4,95 |
F7118 | 18 | 16,0 | 0,45 | 1,35 | 5,98 | 5,05 | 5,23 |
F7119 | 19 | 17,0 | 0,45 | 1,43 | 6,26 | 5,32 | 5,51 |
F7120 | 20 | 18,0 | 0,45 | 1,50 | 6,54 | 5,59 | 5,79 |
F7121 | 21 | 19,0 | 0,45 | 1,57 | 6,82 | 5,86 | 6,07 |
