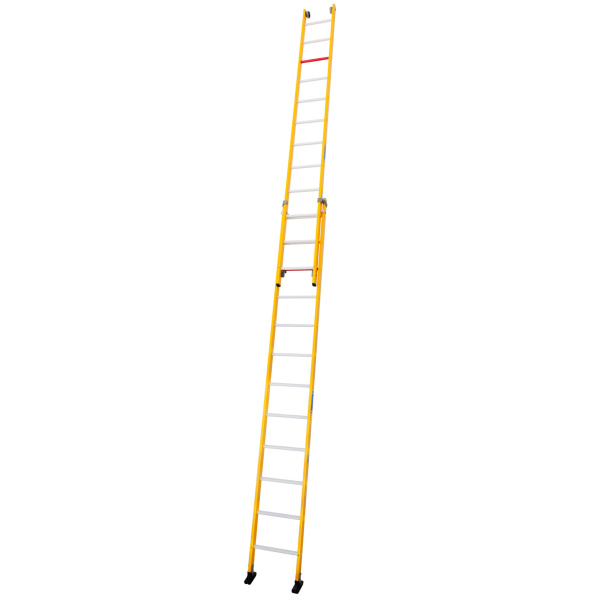

F7200M 2 section manual fiberglass extendable ladder EN 131.1 – EN 131.2 and EN 50528

Category:

Description

Features to stand out

Approximate maximum working height (mts): 11

Inclination °: 75

Rung (mm): 30

Width (mm): 450/500

Rung spacing (mm): 280

Other details

The lower step of the base section and the upper step of the extendable section are reinforced.

You can work with the 2 sections separately

Equipped with tilting shoes.

Height adjustable legs, optional.

Insulator against electrical and thermal agents.

Antimagnetic and resistant to humidity, acids, corrosion and ultraviolet rays.

Stainless steel screws and fittings.

Sliding wheels for facades from model F7210M (not included in lower models).

Uprights closed by covers and steps sealed with plugs.

Sliding rollers between sections to avoid wear of the profiles.

Model
Rungs
Weight
Width D
Overture K
Working height A
Total height J
Folded length
F6206M
2x6
14,0
0,45
0,78
3,75
2,90
1,88
F6207M
2x7
15,5
0,45
0,92
4,31
3,44
2,16
F6208M
2x8
17,0
0,45
1,07
4,87
3,98
2,44
F6209M
2x9
18,5
0,45
1,21
5,43
4,52
2,72
F7210M
2x10
21,0
0,45
1,28
5,71
4,79
3,00
F7211M
2x11
22,5
0,45
1,43
6,27
5,33
3,28
F7212M
2x12
24,0
0,45
1,57
6,83
5,87
3,56
F7213M
2x13
25,5
0,45
1,72
7,39
6,41
3,84
F7214M
2x14
27,0
0,45
1,86
7,95
6,96
4,12
